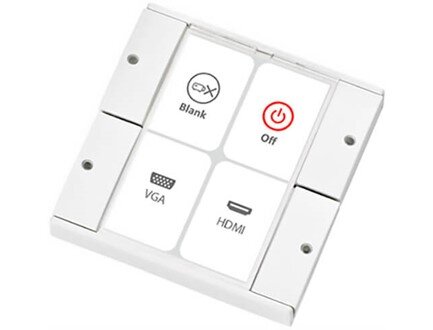

Neets OsCar



4-Button Keypad control system with networked AV Control

Neets Control – OsCar provides uniform AV control interface with a 4-Button Keypad. OsCar is well suited for classrooms and meeting rooms with a projector/ screen setup.

The Central Control software makes it possible to monitor multiple rooms with OsCar installed from a central computer.



  • 4-Button AV control system with Remote Monitoring
    The world’s most compact AV control system – no external processors required

  • 4 Freely configurable keypad buttons
    Provides uniform AV control interface in all rooms and all 4 buttons can be configured for any function

  • 1 Bi-directional RS-232 port or 1 IR port
    Used for controlling projectors, displays, amplifiers & other AV devices with feedback functionality

  • 1 Ethernet port
    Used for controlling two LAN devices and connection to Central Control and Project Designer

  • 2 General Purpose I/O ports
    Used for input/output control of relays, switches and sensors

  • 1 front USB port
    Used for easy system configuration, uploading and downloading project files, service and maintenance

  • Email notifications and warnings
    Email notification on lamp/filter hours and warnings

  • Included
    Configuration through our free and no-license software: Neets Project Designer



Technical Specifications:

Communication ports:
1 x RS-232 (TX and RX) or IR
Baud: 1200 – 115200
Data Bit: 7/8
Parity: None, Even, Odd
Stop Bit: 1/1.5/2

1 x Ethernet port:
Speed: 10/100 Mbit
auto-detect
Devices: 2

2 x I/Os (GPIO)
Input:
Sense Low: <1 VDC
Sense High: >4 VDC

Output:
Type: Open drain
Max Voltage: 24 VDC
Max Current: 0.5 A

Included in box:
12 V PSU (110- 230V AC)

Dimensions:
(without frame) (EU):
Width: 55 mm
Height: 55 mm
Depth: 24 mm

Dimensions:
(without frame) (DK):
Width: 72 mm
Height: 45 mm
Depth: 24 mm

Weight (EU,DK,US)
90 g/ 3,17oz

Compliancy:
Approval: CE
EN 55022
EN 55024

Product item numbers:
310-0155:
Neets Control – OsCar,
EU - Polar white
310-0255:
Neets Control – OsCar,
DK - Polar white
